Épaisseur de la porte compatible :
35 - 105 mm
Diamètre du judas compatible :
14 - 26 mm
| Specifications | |
|---|---|
| Model | CS-HP2-R100-6E2WB-GD, CS-HP2-R100-6E2WB-GR |
| Installation Parameters | |
| Supportive Hole Diameter | 14 to 26 mm (0.55 to 1.0 inch) |
| Supportive Door Diameter | 35 to 105 mm (1.38 to 4.13 inch) |
| Camera Parameters | |
| Sensor | 1/3" Progressive Scan CMOS |
| Lens | 2.0 mm @ F1.6, visual angle (diagonal):146° |
| Max. Resolution | 1080p / 2MP |
| Video Frame Rate | 15fps |
| Interface | |
| Buttons | 1. Screen Wake-up Button （Reset button） 2. On/off Button |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Viewing | Local and remote video Viewing |
| General Function | Cloud video encryption and image encryption |
| Wireless | |

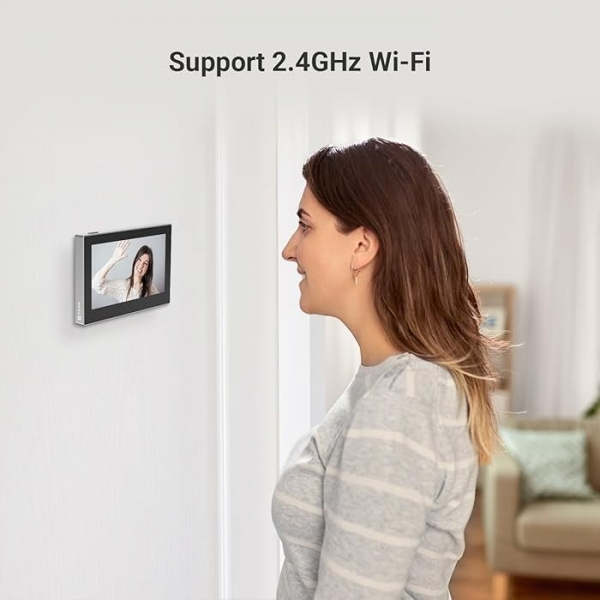

| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General | |

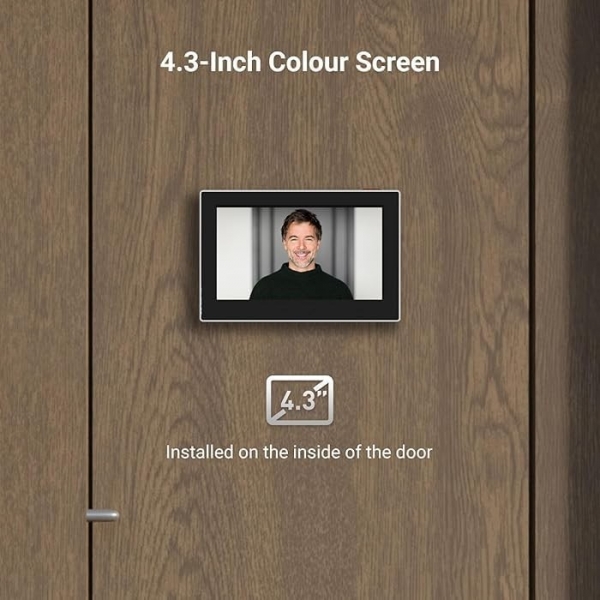

| Screen | 4.3-inch color screen |
| Color | Silver/Golden |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V (±10%) |
| Power Consumption | Max. 2W |
| Dimension | Screen: 113*75*20 mm (4.45*2.95*0.97 inch) |
| Peephole: 32 mm Diameter (1.26 inch Diameter) | |
| Weight | 190g (6.7oz) |
| In the box | |
| In the box | - Camera |
| - Panel | |
| - Mounting Base | |
| - Power Cable | |
| - Screws × 8 | |
| - Regulatory Information ×2 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / WEEE / ROHS / REACH |
