TY7 Dual 2K⁺

Detail

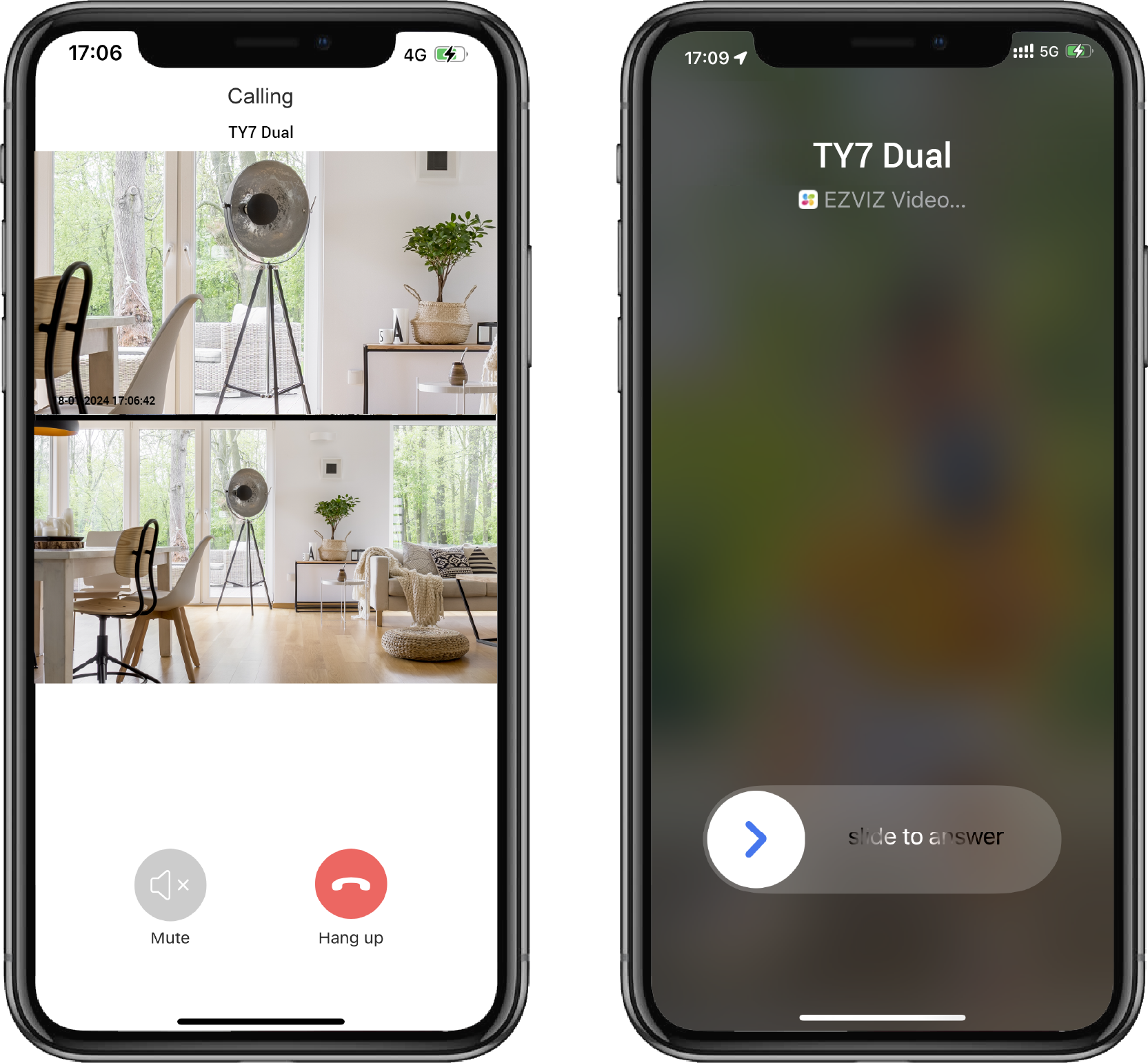

Experience a sharp, almost dead-angle-free indoor vision with the EZVIZ TY7 Dual. By combining two lenses to drastically increase your field of view, it provides whole room protection that’s even better than your conventional pan-and-tilt cameras. Equipped with AI-powered co-detection and flexible auto-patrol modes, the camera is smart enough to capture and keep an eye on the important activities. With added convenience such as a touch-to-call feature and smart integration, it’s a truly easy product for every member of the family.

You will need to choose the Wi-Fi frequency band during the device setup process. Once the choice is made, you will not be able to change it to another frequency band.
Google Assistant is not available in certain languages and countries.
Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making a purchase.
Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.

TY7 Dual 2K⁺

Broader and smarter protection with dual lenses

Specifications

Specifications
Model	CS-TY7-R100-8G44WF
Camera
Resolution	Dual 2K+ Resolution
Image Sensor	1/3" Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Wide-angle Lens	2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
PT Lens	6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)
Lens Mount	M12
Day & Night	IR-cut filter with auto-switching
DNR	3D DNR
WDR	Digital WDR
Compression
Video Compression	H.264/H.265
Video Bit Rate	Adaptive bit rate.
Network
Smart Alarm	Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing	AP paring
Protocol	EZVIZ cloud proprietary protocol
Interface Protocol	EZVIZ cloud proprietary protocol
Max. Resolution	2560 × 1440
Frame Rate	Self-Adaptive during network transmission
Interface
Storage	Micro SD card slot (Max. 512G)
Power	TYPE-C
Wired Network	RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard	IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range	2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz
Channel Bandwidth	2.4GHz Supports 20MHz 5GHz Supports 80MHz
Security	WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate	2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
Output Power(EIRP)	20 dBm
Antenna Gain	2.56dBi@2.48GHz，3.18dBi@5.22GHz
General
Operating Conditions	-10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)
Power Consumption	8W max
Power Supply	DC 5V/2A
IR Range	MAX. 10 meters (32.81ft)
Dimensions	88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)
Package Dimensions	105 × 105 × 200 mm (4.13 × 4.13 × 7.87 in)
Net Weight	270 g
Bare Weight	530 g
In the box
In the box	- Camera
	- Power Adapter
	- Power Cable
	- Drill Template
	- Mounting Plate
	- Screw Kit
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE / WEEE / RoHS / REACH / UL
